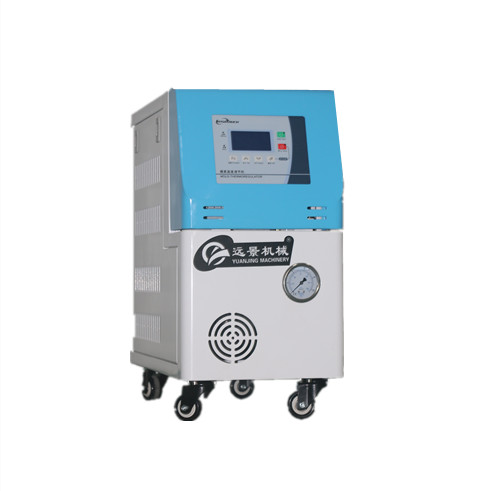

Mold temperature machine
Date:2017-01-11 10:24:37   Hits:8988

Characteristic:
1., the electric control box and the fuselage adopt the isolation type, the heat insulation effect is more, may lengthen the electrical appliance part service life.
2. from the original imported hot oil pump, its working conditions are more than 35% of other brands, high efficiency.
3., the hot oil pipeline system to the external 4 into the 4 branch pipe, will not leak.
4. built in 4 into 4 branch pipes, only involving valves in the exterior, beautiful and practical.
5. special design heating and cooling, fast time, temperature stability, and prevent thermal kerosene rapid metamorphism.
6., safety protection and fault knowledge system is perfect, operation and maintenance is simple and convenient.

Specifications

型号

单位

YJ-1205

YJ-1210

YJ-1220

YJ-1230

YJ-1250

电源

V

Ac220-480V3phase50Hz

温控范围

40-120

40-120

40-120

40-120

40-120

温控精度

±0.1

传热媒介

Water

冷却方式

直接冷却Direct cooling

加热能量

KW

6KW

9KW

9KW-24 KW

9KW-24 KW

9KW-24 KW

泵功率

KW

0.37 KW

0.75 KW

1.5 KW

2.25 KW

3.75 KW

泵最大流量

50Hz/60 Hz/min

35/45

45/58

145/180

165/205

200/225

泵最大压力

50Hz/60 Hz

2.6KG

3.0KG

3.5KG

最大使用电力

KW

6.5

9.5

9.5-24.5

冷却水压要求

Kg/ cm²

2

冷却水配管

Inch

1/2 ''PT

热媒配管

Inch/SET

22出至3/8*PT

外挂式四进四出3/8*PT(或更多)

外形尺寸

mm

560*240*470

600*280*490

675*350*645

949*456*930

重量

Kg

45

55

85

90

100

Specifications, shapes and colours are subject to change without prior notice.
